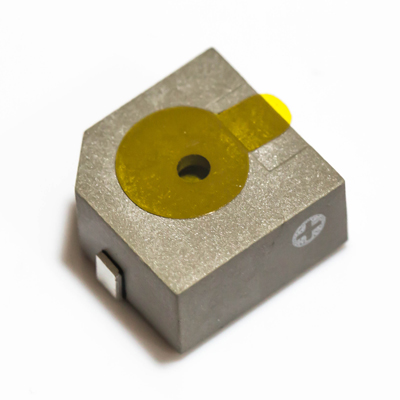

TE122412-5
Click image to view larger

Available from

Authorized Inventory Powered by ECIA
Contact us about this part

TE122412-5

Electro-Mechanical Transducer

Description Units Value
Technology Electro-Mechanical
Resonant Frequency(Hz)2400
Rated Voltage(V)12
SPL @ 10cm(dBA)85
Height(mm)7.10
Width(mm)12.80
Length(mm)12.80
Mount Type Surface Mount
Sound Port Top
Washable Yes
RoHS
Max Input Voltage(V)16
Voltage Range(V)8 ~ 16
Max Rated Current(mA)40
Housing Material PPS
