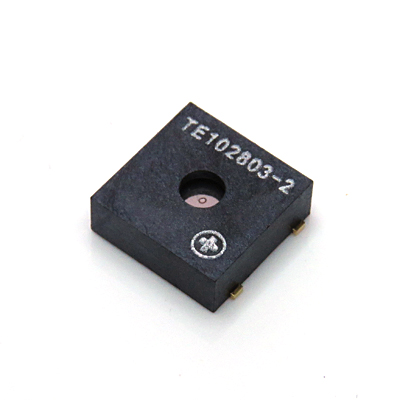

TE102803-2

Electro-Mechanical Transducer

Description Units Value
Technology Electro-Mechanical
Resonant Frequency(Hz)2830
Rated Voltage(V)3.6
SPL @ 10cm(dBA)90
Height(mm)3.50
Width(mm)10.00
Length(mm)10.00
Mount Type Surface Mount
Sound Port Top
Washable No
RoHS
Max Input Voltage(V)4.6
Voltage Range(V)3.6 ~ 4.6
Max Rated Current(mA)100
Housing Material LCP
Housing Color Black
