TE084003-1
Click image to view larger

Available from

Authorized Inventory Powered by ECIA
Contact us about this part

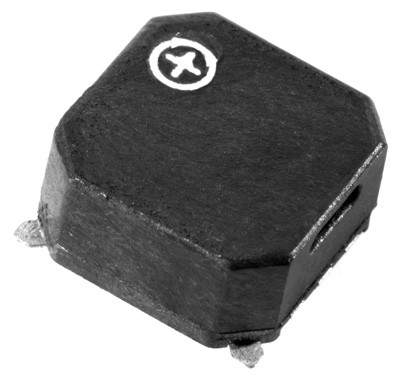

TE084003-1

Electro-Mechanical Transducer

Description Units Value
Technology Electro-Mechanical
Resonant Frequency(Hz)4000
Rated Voltage(V)3.6
SPL @ 10cm(dBA)88
Height(mm)3.20
Width(mm)8.50
Length(mm)8.50
Mount Type Surface Mount
Sound Port Side
Washable No
RoHS
Max Input Voltage(V)4.5
Voltage Range(V)2.5 ~ 4.5
Max Rated Current(mA)100
Housing Material LCP
