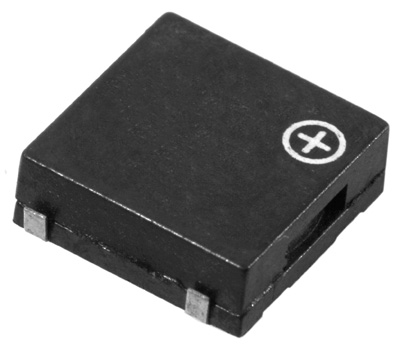

TE082603-2

Electro-Mechanical Transducer

Description Units Value
Technology Electro-Mechanical
Resonant Frequency(Hz)2670
Rated Voltage(V)3.6
SPL @ 10cm(dBA)90
Height(mm)3.00
Width(mm)8.50
Length(mm)8.50
Mount Type Surface Mount
Sound Port Side
Washable No
RoHS
Max Input Voltage(V)4.5
Voltage Range(V)2.5 ~ 4.5
Max Rated Current(mA)90
Housing Material LCP
Housing Color Black
