TP144005-1

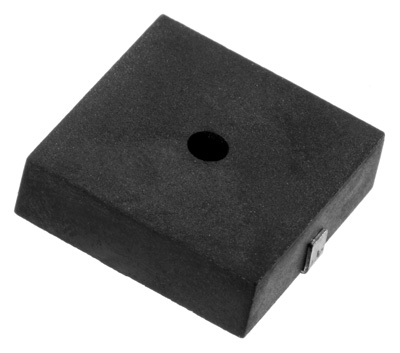

Piezo Transducer

Description Units Value
Technology Piezo
Resonant Frequency(Hz)4000
Rated Voltage(V)5
SPL @ 10cm(dBA)75
Height(mm)4.00
Width(mm)14.10
Length(mm)14.10
Mount Type Surface Mount
Sound Port Top
Washable No
RoHS
Max Input Voltage(V)25
Voltage Range(V)1 ~ 25
Max Rated Current(mA)5
Capacitance(pF)12,000 ± 30%
Housing Material PPS
Housing Color Black
