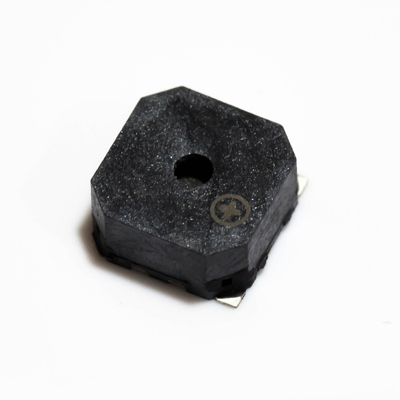

TE082703-3

Electro-Mechanical Transducer

Description Units Value
Technology Electro-Mechanical
Resonant Frequency(Hz)2730
Rated Voltage(V)3.6
SPL @ 10cm(dBA)85
Height(mm)4.00
Width(mm)8.50
Length(mm)8.50
Mount Type Surface Mount
Sound Port Top
Washable No
RoHS
Max Input Voltage(V)4.5
Voltage Range(V)2.5 ~ 4.5
Max Rated Current(mA)100
Housing Material LCP
