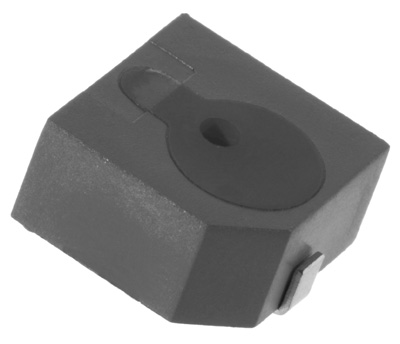

TE122005-1
Electro-Mechanical Transducer
| Description | Units | Value |
|---|---|---|
| Technology | Electro-Mechanical | |
| Resonant Frequency | (Hz) | 2400 |
| Rated Voltage | (V) | 5 |
| SPL @ 10cm | (dBA) | 87 |
| Height | (mm) | 7.10 |
| Width | (mm) | 12.80 |
| Length | (mm) | 12.80 |
| Mount Type | Surface Mount | |
| Sound Port | Top | |
| Washable | Yes | |
| RoHS |  | |
| Max Input Voltage | (V) | 8 |
| Voltage Range | (V) | 3 ~ 8 |
| Max Rated Current | (mA) | 40 |
| Housing Material | PPS | |
| Housing Color | Gray |
