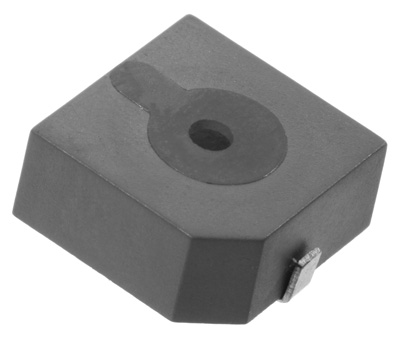

TE122401-3

Electro-Mechanical Transducer

Description Units Value
Technology Electro-Mechanical
Resonant Frequency(Hz)2400
Rated Voltage(V)1.5
SPL @ 10cm(dBA)80
Height(mm)7.10
Width(mm)12.80
Length(mm)12.80
Mount Type Surface Mount
Sound Port Top
Washable Yes
RoHS
Max Input Voltage(V)3
Voltage Range(V)1 ~ 3
Max Rated Current(mA)30
Housing Material PPS
