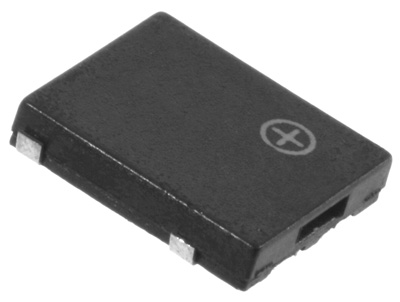

TE102603-1
Electro-Mechanical Transducer
| Description | Units | Value |
|---|---|---|
| Technology | Electro-Mechanical | |
| Resonant Frequency | (Hz) | 2670 |
| Rated Voltage | (V) | 3.6 |
| SPL @ 10cm | (dBA) | 88 |
| Height | (mm) | 2.00 |
| Width | (mm) | 8.50 |
| Length | (mm) | 10.00 |
| Mount Type | Surface Mount | |
| Sound Port | Side | |
| Washable | No | |
| RoHS |  | |
| Max Input Voltage | (V) | 5 |
| Voltage Range | (V) | 2 ~ 5 |
| Max Rated Current | (mA) | 100 |
| Housing Material | LCP | |
| Housing Color | Black |
