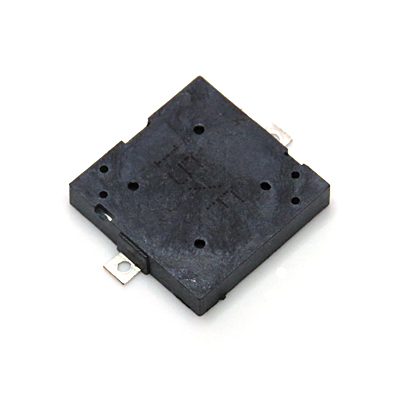

TP134105-1

High Temp Piezo Transducer

Description Units Value
Technology Piezo
Resonant Frequency(Hz)4100
Rated Voltage(V)5
SPL @ 10cm(dBA)75
Height(mm)2.50
Width(mm)13.00
Length(mm)13.00
Mount Type Surface Mount
Sound Port Top
RoHS
Max Input Voltage(V)30
Max Rated Current(mA)5
Capacitance(pF)16,000
Housing Material LCP
