Nov. 1, 2015
The DB Unlimited New Line of High Power Micro Speakers

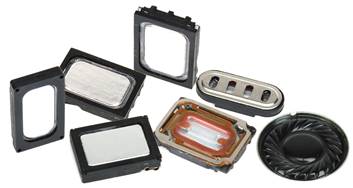

DB Unlimited is excited to announce a new line of micro speakers that are capable of high output and performance in an extremely small package. With package sizes as small as 15 mm (L) x 9 mm (W) x 2.5 mm (H) and still capable of 92 dBA at 10 cm, these speakers bring a powerful sound to those customer applications where space is a premium. With broad frequency range and resonant frequencies as low as 500 Hz, the sound quality of these speakers is exceptional given their small size.
Features:
- Small package size
- High SPL to size ratio
- Broad frequency range and low resonant frequency
- Up to 1 watt input power
- 6 ohm and 8 ohm versions available
| Part Number | Length (mm) |
Width (mm) |
Height (mm) |
Resonant Frequency (Hz) |
Sound Pressure Level(dBA) |
Nominal Power (W) |
Max Power (W) |
Impedance (Ohm) |
|---|---|---|---|---|---|---|---|---|
| SM150506-1 | 15 | 11 | 3.9 | 500 | 92 | 0.7 | 1 | 6 |
| SM150506-2 | 15 | 11 | 2.5 | 550 | 92 | 0.7 | 1 | 6 |
| SM150508-1 | 15 | 11 | 4 | 500 | 89 | 0.7 | 1 | 8 |
| SM150508-2 | 15 | 9.8 | 4.45 | 500 | 89 | 0.7 | 1 | 8 |
| SM160508-2 | 16 | 9 | 3 | 500 | 80 | 0.7 | 1 | 8 |
| SM220908-1 | 22 | 9 | 3.7 | 900 | 83 | 0.5 | 1 | 8 |
