TP224012-1

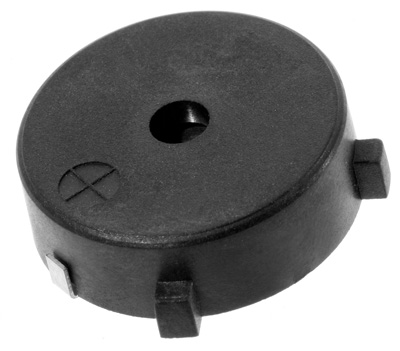

Piezo Transducer

Description Units Value
Technology Piezo
Resonant Frequency(Hz)4000
Rated Voltage(V)12
SPL @ 10cm(dBA)90
Height(mm)7.00
Width(mm)22.10
Length(mm)22.10
Mount Type Surface Mount
Sound Port Top
Washable No
RoHS
Max Input Voltage(V)40
Voltage Range(V)1 ~ 40
Max Rated Current(mA)7
Capacitance(pF)15,000 ± 30%
Housing Material PPS
Housing Color Black
