TP124003-2

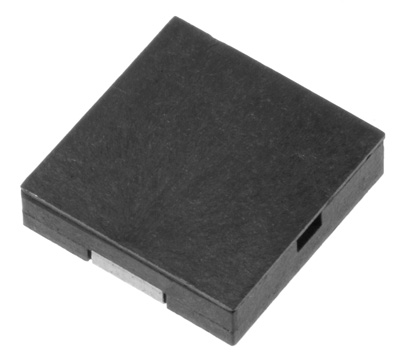

Piezo Transducer

Description Units Value
Technology Piezo
Resonant Frequency(Hz)4000
Rated Voltage(V)3
SPL @ 10cm(dBA)75
Height(mm)3.00
Width(mm)12.00
Length(mm)12.00
Mount Type Surface Mount
Sound Port Side
Washable No
RoHS
Max Input Voltage(V)25
Voltage Range(V)1 ~ 25
Max Rated Current(mA)5
Capacitance(pF)15,000 ± 30%
Housing Material LCP
Housing Color Black
