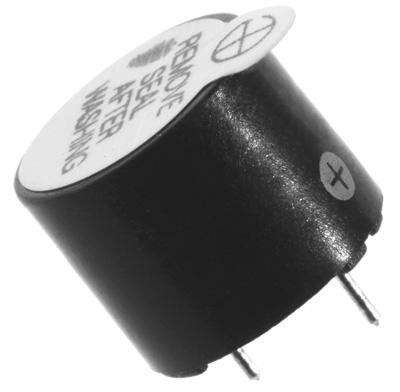

TE122405-2

Electro-Mechanical Transducer

Description Units Value
Technology Electro-Mechanical
Resonant Frequency(Hz)2400
Rated Voltage(V)5
SPL @ 10cm(dBA)85
Height(mm)10.00
Width(mm)12.00
Length(mm)12.00
Mount Type Thru Hole
Sound Port Top
Washable Yes
RoHS
Max Input Voltage(V)8
Voltage Range(V)3 ~ 8
Max Rated Current(mA)50
Pin Spacing 1(mm)6.50
Pin Length 1(mm)3.30
Housing Material NORYL
Housing Color Black
