Product Detail

Quality You Can Hear

TP174012-1
Click image to view larger

Available from

Authorized Inventory Powered by ECIA
Contact us about this part

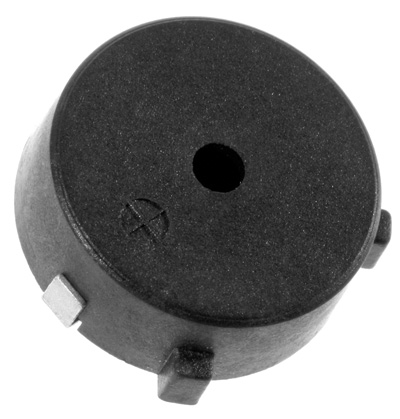

TP174012-1

Piezo Transducer

Description Units Value
Technology Piezo
Resonant Frequency(Hz)4000
Rated Voltage(V)12
SPL @ 10cm(dBA)90
Height(mm)6.00
Width(mm)17.00
Length(mm)17.00
Mount Type Surface Mount
Sound Port Top
Washable No
RoHS
Max Input Voltage(V)30
Voltage Range(V)1 ~ 30
Max Rated Current(mA)7
Capacitance(pF)15,000 ± 30%
Housing Material PPS
Housing Color Black
