TP145012-1

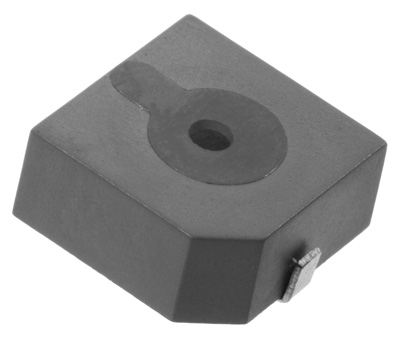

Piezo Transducer

Description Units Value
Technology Piezo
Resonant Frequency(Hz)5000
Rated Voltage(V)12
SPL @ 10cm(dBA)85
Height(mm)6.80
Width(mm)14.80
Length(mm)14.80
Mount Type Surface Mount
Sound Port Top
Washable Yes
RoHS
Max Input Voltage(V)20
Voltage Range(V)1 ~ 20
Max Rated Current(mA)7
Capacitance(pF)12,000 ± 30%
Housing Material PPS
Housing Color Gray
