TP143305-2

Suggested alternative to TP143305-1

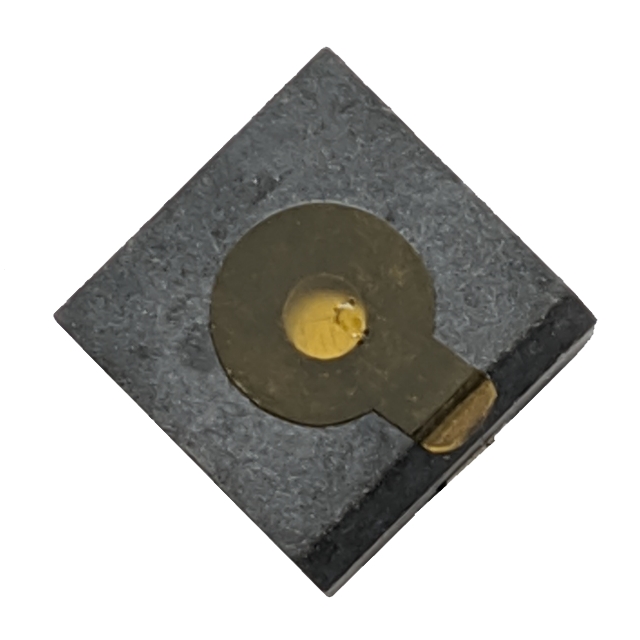

Piezo Transducer

Description Units Value
Technology Piezo
Resonant Frequency(Hz)3300
Rated Voltage(V)5
SPL @ 10cm(dBA)80
Height(mm)11.00
Width(mm)14.80
Length(mm)14.00
Mount Type Surface Mount
Sound Port Top
RoHS
Max Input Voltage(V)30
Voltage Range(V)1 ~ 30
Max Rated Current(mA)5
Capacitance(pF)15,000 ± 30%
Housing Material PPS
Housing Color Black
