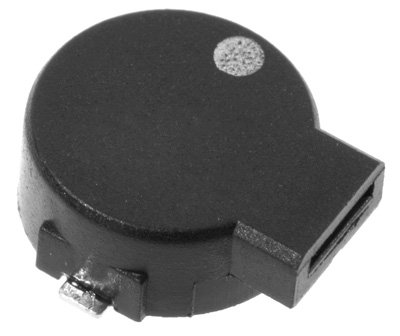

TE092603-1

Electro-Mechanical Transducer

Description Units Value
Technology Electro-Mechanical
Resonant Frequency(Hz)2670
Rated Voltage(V)3.6
SPL @ 10cm(dBA)90
Height(mm)3.20
Width(mm)9.60
Length(mm)9.60
Mount Type Surface Mount
Sound Port Side
Washable No
RoHS
Max Input Voltage(V)5
Voltage Range(V)2 ~ 5
Max Rated Current(mA)80
Housing Material LCP
Housing Color Black
