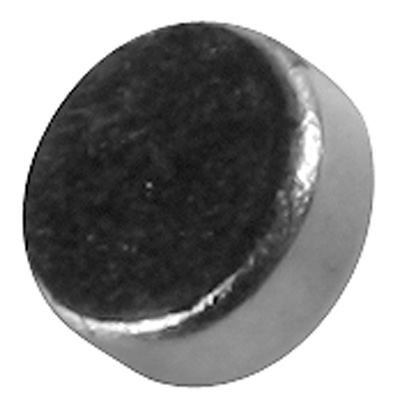

MO064002-1
Omnidirectional Electret Condenser Microphone
| Description | Units | Value |
|---|---|---|
| Directivity | Omnidirectional | |
| Technology | Electret Condenser | |
| Height | (mm) | 2.20 |
| Width | (mm) | 6.00 |
| Length | (mm) | 6.00 |
| Sensitivity | (dB) | -40 ± 3 |
| Rated Voltage | (V) | 2 |
| Signal Output | Analog | |
| Sound Port Location | Top | |
| Frequency Range | (Hz) | 50 ~ 16,000 |
| Impedance | (Ohm) | 2200.00 |
| RoHS |  | |
| Mount Type | Flush Mount | |
| Voltage Range | (V) | 1 ~ 10 |
| Max Input Voltage | (V) | 10 |
| Connection Method | Solder Pads | |
| Max Rated Current | (mA) | 0.5 |
| Shape | Round |
