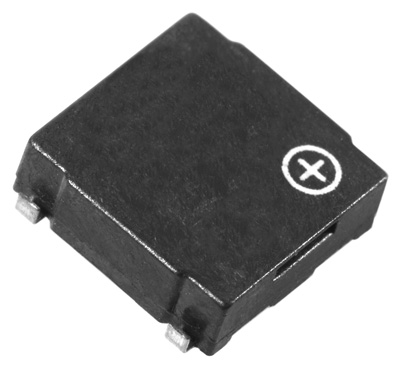

Click image to view larger

Available from

Authorized Inventory Powered by ECIA
Contact us about this part

TE082603-1

Electro-Mechanical Transducer

Description Units Value
Technology Electro-Mechanical
Resonant Frequency(Hz)2670
Rated Voltage(V)3.6
SPL @ 10cm(dBA)88
Height(mm)2.50
Width(mm)8.00
Length(mm)8.00
Mount Type Surface Mount
Sound Port Side
Washable No
RoHS
Max Input Voltage(V)5
Voltage Range(V)2 ~ 5
Max Rated Current(mA)90
Housing Material LCP
Housing Color Black
