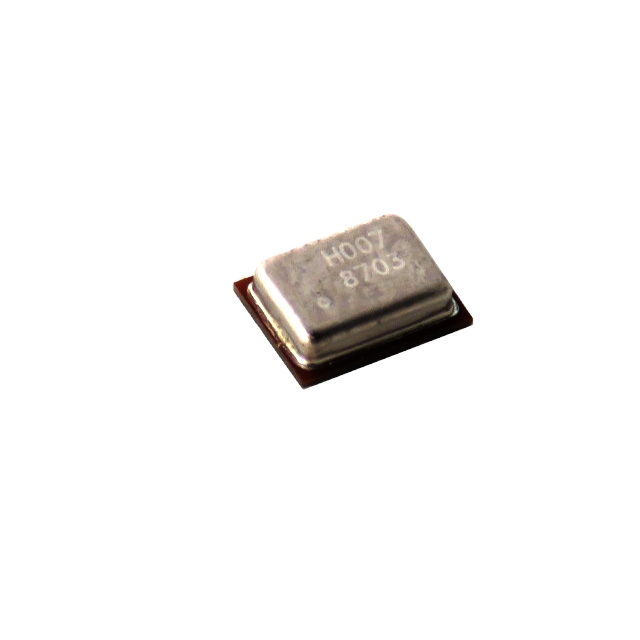

MM032602-1
Digital MEMS Microphone
| Description | Units | Value |
|---|---|---|
| Directivity | Omnidirectional | |
| Technology | MEMS | |
| Height | (mm) | 0.98 |
| Width | (mm) | 2.65 |
| Length | (mm) | 3.50 |
| Sensitivity | (dB) | -26 ± 1 |
| Rated Voltage | (V) | 2 |
| Signal Output | Digital | |
| Sound Port Location | Bottom | |
| Frequency Range | (Hz) | 100 ~ 10,000 |
| RoHS |  | |
| Mount Type | Surface Mount | |
| Voltage Range | (V) | 1.6 ~ 3.6 |
| Max Input Voltage | (V) | 3.6 |
| Connection Method | Surface Mount Pads | |
| Max Rated Current | (mA) | 0.54 |
| Shape | Rectangle |
