Aug. 1, 2015

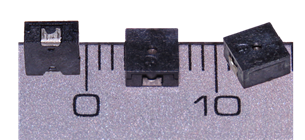

DB Unlimited Adds Smallest Electro Mechanical Transducers to the Largest and Most Diverse Selection of Surface Mount Transducers in the Industry

DB Unlimited has the broadest selection of surface mount transducers in the industry, both in piezo and electro mechanical technologies. With the ability to externally drive these transducers to get a variety of sound outputs and with all the different package types we offer, the customer has virtually "unlimited" potential solutions. Whether your application calls for a surface mount transducer with the smallest X, Y or Z dimension, highest sound output, lowest power consumption or any combination thereof, customers can find the exact solution they need in the DB Unlimited line up of surface mount transducers by using Mouser's powerful search filters.

Surface Mount Transducer Product Highlights:

  • Smallest Electro Mechanical Transducer: TE044003-1 (top firing) and TE044003-2 (side firing)
  • Second Smallest Electro Mechanical Transducer: TE054003-1 (top firing) and TE054003-2 (side firing)
  • Second Smallest Electro Mechanical Transducer: TE054003-1 (top firing) and TE054003-2 (side firing)
  • Smallest Z Piezo Transducer: TP114105-2
  • Highest SPL Side Firing Electro Mechanical Transducer: TE102803-1
  • Highest SPL Top Firing Electro Mechanical Transducer: TE102803-2

Part Number Length
(mm)
Width
(mm)
Height
(mm)
Sound
Pressure
Level
(dBA)
Rated
Voltage
(V)
Max
Rated
Current
(mA)
Resonant
Frequency
(Hz)
Sound
Port
TE044003-1 4 4 2 70 3 90 4,000 Top
TE044003-2 4 4 2 70 3 90 4,000Side
TE054003-1 5 5 2 78 3 100 4,000Top
TE054003-2 5 5 3 78 3 100 4,000Top
TP094003-1 9 9 1.9 65 3 3 4,000Top
TP114105-2 11 9 1.7 75 5 5 4,100Top
TE102803-1 10 10 3.5 93 3.6 100 2,830Side
TE102803-2 10 10 3.5 90 3.6 100 2,830Top
TE082603-1 8 8 2.5 88 3.6 90 2,670Side
TE082603-2 8.5 8.5 3 90 3.6 90 2,670 Side
TE082703-1 8.5 8.5 3.2 85 3.6 100 2,730Side
TE082305-1 8.5 8.5 4 87 5 90 2,350 Side
TE082703-3 8.5 8.5 4 85 3.6 100 2,730 Top
TE084003-1 8.5 8.5 3.2 88 3.6 100 4,000Side
TE082703-2 8.5 8.5 4 85 3.6 90 2,730 Side
TE093103-1 9 9 4 87 3.6 90 3,100 Side
TE092603-1 9.6 9.6 3.2 90 3.6 80 2,670Side
TE102603-1 10 8.5 2 88 3.6 100 2,670 Side
TP124003-2 12 12 3 75 3 5 4,000 Side
TE122005-1 12.8 12.8 7.1 87 5 40 2,048Top
TE122412-3 12.8 12.8 10 85 12 40 2,400Top
TE122401-2 12.8 12.8 10 80 1.5 30 2,400Top
TE122401-3 12.8 12.8 7.1 80 1.5 30 2,400Top
TE122405-5 12.8 12.8 7.1 85 5 40 2,400Top
TE122412-5 12.8 12.8 7.1 85 12 40 2,400Top
TP134105-1 13 13 2.5 75 5 5 4,100Top
TE142705-1 14 11 3 87 5 70 2,730 Side
TP144005-1 14.1 14.1 4 75 5 5 4,000 Top
TP143305-1 14.3 14.3 10.7 80 5 5 3,300Top
TP145012-1 14.8 14.8 6.8 85 12 7 5,000Top
TP174012-1 17 17 6 90 12 7 4,000Top
TP204003-1 20 20 5.2 80 3 5 4,000Top
TP224012-1 22.1 22.1 7 90 12 7 4,000Top
